用途：
主要用于城市给排水、化工、防洪、水利等水工构筑物进出水口，作流道切换或截断水流之用。可广泛用于自来水厂、污水处理厂、城市雨污水帮站、水利防汛等行业。

结构特点：
该闸门主要由门框、门体、支承板、密封装置等部件所组成。由于在设计中采用了耐腐蚀的不锈钢为材料和双向支承结构的方式，所以具有：重量轻、耐蚀性好、使用寿命长、可双向承受压力条件及密封性能好等特点。

主要技术参数及规格：
1、设计工作向压力0.1Mpa；
2、渗透量小于0.02L/sm2；

Gate Usage

It is mainly used for water supply and drainage, chemical industry, flood control, water conservancy and other hydraulic structures in and out of the water outlet, for the flow channel switching or interception of water flow. It can be widely used in waterworks, sewage treatment plants, urban rainwater and sewage stations, water conservancy and flood control industries.

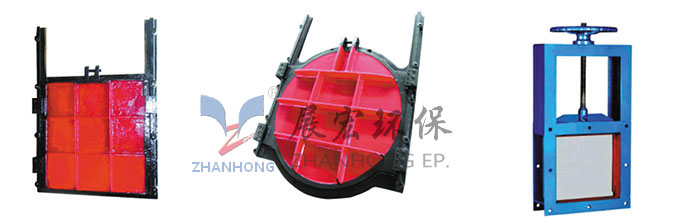

Structural features:

The gate is mainly composed of frame, body, supporting plate and sealing device. Due to the use of corrosion resistant stainless steel in the design of the material and bi-directional support structure, so it has: light weight, corrosion resistance, long service life, bi-directional pressure conditions and good sealing performance.

Main technical parameters and specifications:

1. Design working pressure: 0.1Mpa;

2. The penetration amount is less than 0.02L /sm²;
