一、概述
锅炉设备能否安全与经济运行,水质处理是非常重要的。锅炉给水不进行处理或处理不当，必然在受热面上结垢，使炉壁传热性能降低，增加燃料水泵还会产生腐蚀、爆管、甚至引起爆炸事故。特别在原水水质硬度较大的地区。普及锅炉水处理，对确保锅炉安全经济运行；提高锅炉效率；延长锅炉使用年限；节约能源具有很重要的意义。
GZZ全自动锅炉软化水装置，是最新的专门为各型锅炉配套而设计的，是根据我国大部分地区原水水质硬度大的特点而进行的专项设计。
GZZ全自动锅炉软化水装置采用不同的组合、运行方式，其中有单罐、双罐、三罐组合。由美国AUTOTROL公司生产的全自动软化水控制器、控制阀可以提供多种控制运行的方式，从而保证交换柱的足够产水量。
GZZ全自动锅炉软化水装置的系列产品，可以满足您对各种需水量的要求，在进水总硬度不超过8mgN/L条件下运行，出水残留硬度可保证达到0.003mgN/L的国家锅炉用水标准。
二、特点
集优良设计，优良操作性能于一身的GZZ系列全自动软化水装置，是全新引进技术制造的首选换代产品（亦可用于原设备自动化工程改造）。由美国AUTOTROL公司制造的全自动控制单元保障设备运行，独特的再生控制方式可使设备使用成本隆至最低，功率升至最高，消除您所有的顾虑。简洁明了的整体结构有在您有限的空间完成使命，辅助主体设备发挥最大的潜力。

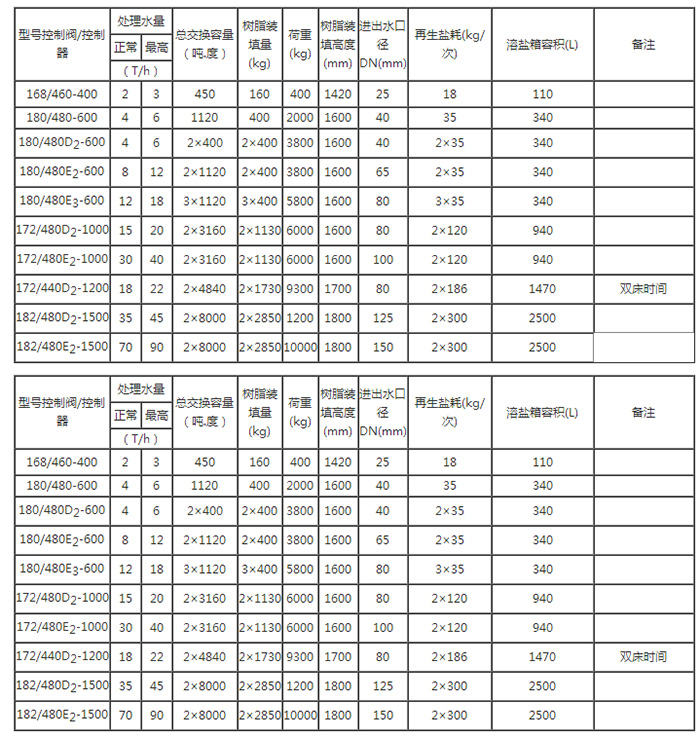

三、主要技术参数

Automatic softening water equipment

I. Overview

The safety and economic operation of boiler equipment is very important for water quality treatment. If the boiler feed water is not treated or treated improperly, it will inevitably scale on the heating surface, reduce the heat transfer performance of the furnace wall, increase the fuel, and cause corrosion, tube explosion and even explosion. Especially in areas where the raw water quality is hard. Popularizing boiler water treatment is of great significance for ensuring safe and economic operation of boilers, improving boiler efficiency, extending boiler life, and saving energy.

GZZ automatic boiler water softening device, is the latest specially designed for all types of boilers. It is a special design based on the hardness of raw water in most areas of China.

GZZ automatic boiler water softening device adopts different combination and operation mode, including single tank, double tank and three tank combination. The fully automatic water softening controller and control valve manufactured by AUTOTROL can provide a variety of ways to control the operation, so as to ensure the sufficient water yield of the exchange column.

GZZ automatic boiler softening water device series products can meet your requirements for various water requirements. When the total influent hardness does not exceed 8mgN/L, the residual hardness of the effluent can be guaranteed to reach the national boiler water standard of 0.003mgN/L.

II. Characteristics

GZZ series automatic softening water device with excellent design and excellent operation performance is the first generation of new imported technology (also used for original equipment automation engineering). Fully automatic control unit manufactured by AUTOTROL, USA, guarantees equipment operation. All your concerns can be eliminated based on the unique regenerative control method minimizing the cost of equipment and maximizing power. The concise and clear overall structure can fulfill the mission in your limited space, and the auxiliary main equipment can exert its maximum potential.

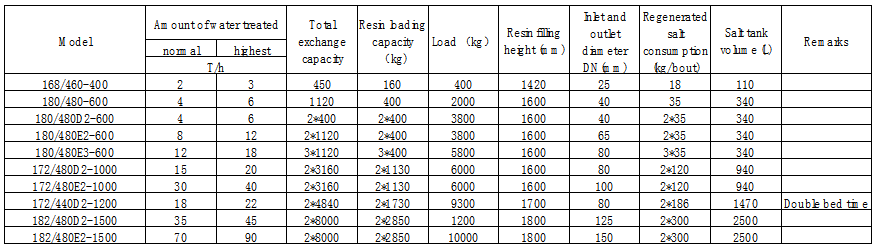

III. Main technical parameters
