●产品特征：

1、精确过滤：可根据用水要求选择不同精度的过滤盘，有20μ、50μ、100μ、200μ多种规格。
2、高效反洗：高速和彻底的反洗，只在20秒左右即可完成。
3、全自动运行，连续出水：在过滤器组套内，反洗过程轮流交替进行，工作、反洗状态之间，自动切换，可确保连续出水。系统压损小。
4、标准：标准模块系统设计，用户可按需取舍，灵活可变，互换性强。
5、非标准：可灵活利用边角空间，因地制宜安装，占地很少。
6、运行可靠维护简单：几乎不需日常维护，部件100%经工厂检测和试运转，不需专用工具，备品备件很少。
7、使用寿命长：高科技塑料过滤芯坚固、无磨损、无腐蚀，经多年工业实用验证，过滤和反洗效果不会随使用时间而变差。

●组合形式：

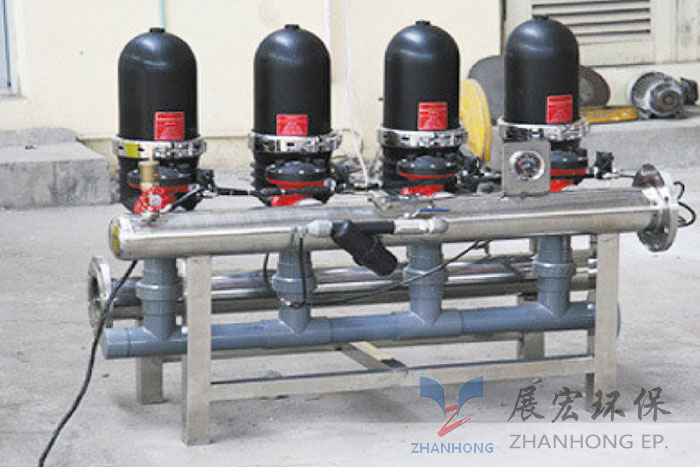

若干个过滤单元并联，形式JY系列盘片式过滤器。
基本组合有JY2-3～5（3～5个2"过滤头）；JY3-3～10(3～10个3"过滤头)共11种组合方式。

●工作原理：
JY过滤器分JY2（2"）、JY3（3"）二种基本过滤单元，其中过滤芯是由一组带沟槽棱边形成的交叉点把水中固体物截留。由于同时具有表面拦截和浓度凝聚的作用，大大提高了过滤效果.

●工作状态

过滤盘片在弹簧力和水力作用下被紧密地压在一起。当含有杂质的水通过时杂质颗粒被截留。

●反洗状态

控制器控制阀门改变水流方向。盘片被松开，位于盘片中央的喷嘴沿切线喷射，使盘片旋转，盘上截留的固体物被冲洗出去。

●技术参数

工作压力：0.25～0.8MPa
反洗压力：0.15～0.6MPa
反洗时间:：5～20秒可调
反洗水用量： 30～100 升（单个过滤头）
系统压损：0.001～0.08MPa
工作温度：4～75℃
pH：4.0～13
JYF系列组套说明：
工作压力：0.08～0.8MPa
反洗压力：0.15～0.6MPa
反洗水进水阀门：铜阀2“ BSPT螺纹
过滤单元数量： 2～8个
如果来水压力低，不足以满足反洗要求，可采用外接反洗水源JYF系列或增加出口主阀的方式，保证盘式过滤器的正常运行和反洗。

●选型设计

每个过滤单元（3"或2"）,针对不同的原水水质和不同的出水精度要求,其产水量也是不同的(参见参数表)
一般把原水水质分成四类：
A、优良水质：城市自来水，从稳定的含水层抽取的井水；
B、一般水质：循环准冷却水，经沉淀处理过的地面水，经过有效沉淀和完全生物筛过的排水；
C、较差水质：从水质很差的含水层抽取的地下水，经过有效沉淀，但未经或经很少的生物处理的排水，有微生物大量繁殖的地面水；
D、很差水质：从很脏或富含铁锰的井中抽取的井水，受洪水影响且未经沉淀的地面水，未经沉淀及生物处理的排水。为保证过滤系统较好的工作状态，D类水质需要进行预处理以提高一个等级。

●设备材质

JY过滤头由增强聚酰胺塑料成型制造，防腐耐磨，可承受工作压力0.8Mpa 。
过滤盘材质为聚丙烯塑料，密封为EPDM，进出水及排水管路为不锈钢材质。

●安装说明

1、电源：220V、50ZH，现场附近装有标准插座即可。进出水管道与设备系统法兰联接，参见设备外形尺寸图。
2、控制器为专用定型产品，已固定在过滤器上；
3、进水、出水管应加装手动阀门，同时阀门里侧装压力表；
4、设备通过膨胀螺丝固定在水泥平台。

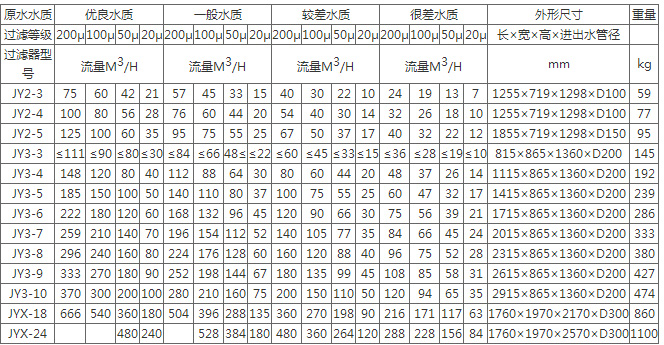

●过滤设备选型参数表

JYF系列高度较相应JY2或JY3增加250~400mm，重量也有增加。

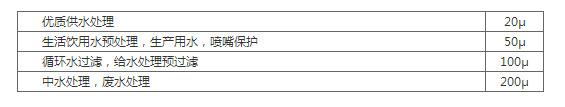

●过滤等级参考

Disc filter

● Product Features:

1. Precise filtration: Filter discs with different precision can be selected according to water requirements, and there are 20μ, 50μ, 100μ and 200μ specifications.

2, efficient backwash: high speed and thorough backwashing, complete only in about 20 seconds.

3, fully automatic operation, continuous working: in the filter set, the backwash process alternately, between the work, backwash state, automatic switching, to ensure continuous water. The system has a small pressure loss.

4. Standard: Standard module system design, users can choose according to needs, flexible and interchangeable.

5, non-standard: flexible use of corner space, suitable for local installation, occupying a small area.

6, reliable operation and maintenance is simple: almost no daily maintenance, 100% of the parts are tested and commissioned by the factory, no special tools are required, and there are few spare parts.

7, long service life: high-tech plastic filter core is strong, no wear, no corrosion, after many years of industrial practical verification, filtration and backwashing effect will not deteriorate with the use of time.

● Combination form:

Several filter units are connected in parallel to form the JY series disc filter.

The basic combination includes JY2-3~5 (3~5 2" filter nozzles; JY3-3~10 (3~10 3" filter nozzles) a total of 11 combinations.

● working principle:

JY filter has JY2 (2") and JY3 (3") basic filtering units. The filter element consists of a set of intersecting points formed by grooves and edges to trap solids in the water. Because of the function of surface interception and concentration condensation, the filtering effect is greatly improved.

● working state

The filter disks are tightly packed together by spring and hydraulic forces. Impurity particles are trapped when water containing impurities passes through.

● backwash state

The controller controls the valve to change the flow direction. The disc is released, and a nozzle located in the center of the disc sprays along the tangent line, causing the disc to rotate and the solids trapped on the disc to be washed out.

● technical parameters

Working pressure: 0.25 ~ 0.8mpa

Backwash pressure: 0.15 ~ 0.6mpa

Backwash time: 5 ~ 20 seconds adjustable

Backwashing water consumption: 30 ~ 100 l (single filter nozzle)

System pressure loss: 0.001 ~ 0.08MPa

Operating temperature: 4 ~ 75℃

PH: 4.0 ~ 13

JYF series instructions:

Working pressure: 0.08 ~ 0.8mpa

Backwash pressure: 0.15 ~ 0.6mpa

Backwash inlet valve: Copper valve 2 "BSPT screw thread

Number of filtering units: 2 ~ 8

If the incoming water pressure is low and insufficient to meet the backwashing requirements, If the incoming water pressure is low enough to meet the requirements of backwashing, JYF series external backwashing water source can be adopted or the main outlet valve can be added to ensure the normal operation and backwashing of the disc filter.

●Selection design

Each filter unit (3" or 2") has different water production rates for different raw water quality and different water discharge accuracy requirements (see parameter table)

The raw water quality is generally divided into four categories:

A. Excellent water quality: urban tap water, well water drawn from a stable aquifer;

B. General water quality: circulating quasi-cooling water, surface water treated by sedimentation, drainage after effective sedimentation and complete bio-screening;

C. Poor water quality: Groundwater extracted from aquifers with poor water quality, after effective sedimentation, but without or with little biological treatment of drainage, there is surface water in which microbes multiply;

D. Very poor water quality: well water extracted from well-dirty or iron-manganese-rich wells, surface water affected by flooding and not precipitated, drainage without sedimentation and biological treatment. In order to ensure a good working condition of the filtration system, Class D water quality needs to be pretreated to improve one level.

● equipment material

JY filter nozzle is made of reinforced polyamide plastic, anticorrosive and wear-resistant, and can withstand working pressure of 0.8mpa.

The filter plate is made of polypropylene plastic, the seal is EPDM, and the water inlet and outlet channels are made of stainless steel.

●Installation instructions

1. Power supply: 220V, 50ZH, standard sockets can be installed near the site. The inlet and outlet pipes are connected to the flange of the equipment system. See the dimension sheet.

2. The controller is a special shaped product that has been fixed on the filter;

3. The inlet valve and the outlet pipe should be equipped with a manual valve, and the pressure gauge on the side of the valve;

4. The equipment is fixed on the cement platform by expansion screws.

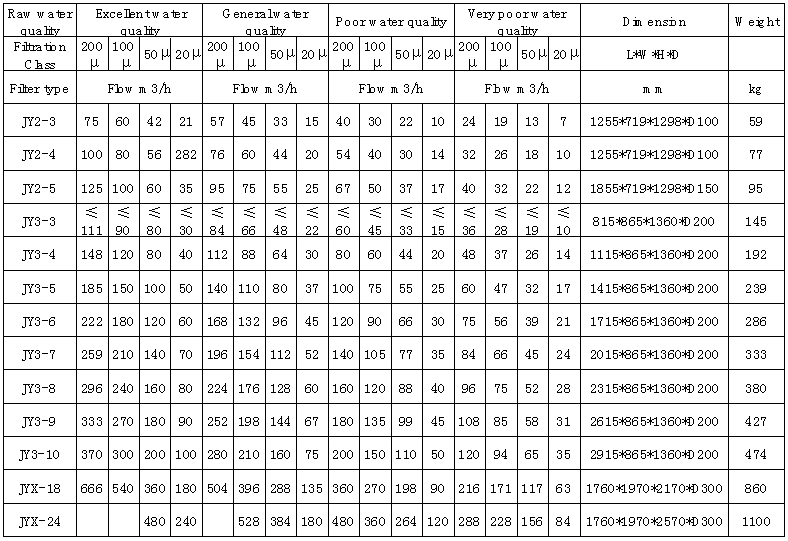

●Filter equipment selection parameter sheet

The height of the JYF series is 250~400mm higher than the corresponding JY2 or JY3. Weight is also increased.

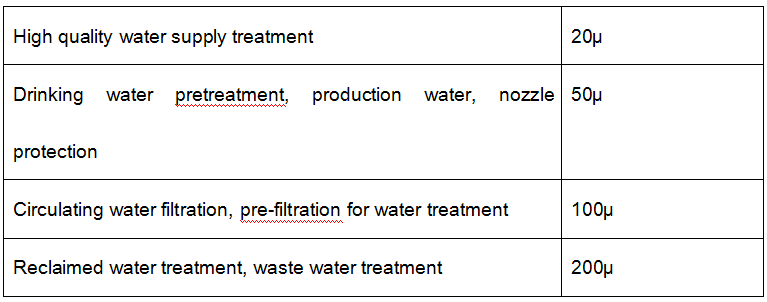

● filter level reference
