一、概述：
全自动自清洗式过滤器，设备结构紧凑、占地少、运行经济、抗冲击负荷能力强、处理效率高，同时用户可根据用水要求更换中间筛筒，以达到过滤精度。
二 、设备特点：
·设备的布置：室内、室外均可，（但选用时必须说明）。
·设备对周围环境无影响，无噪音、无振动等二次污染。
·全自动智能化控制，无需专业管理人员。
·操作简单、维护方便、效果稳定、使用寿命长。
·设备占地少、处理量大、反洗耗水量小。
·设备可根据用户要求、现场条件，同时依据原水水质和出水要求进行特殊处理。
三、设备的技术参数和适用范：
·单套设备处理量：100.0～2500.0㎡/h。
·设备的过滤精度：3500～10μm。
·最小 工作 压力：0.20MPa。
·最大 工作 压力：1.60MPa.。
·清 洗 历 时：1～3min。
·清 洗 水 耗 量：～500L。
·工 作 温 度：4～80℃。
·设备 主体 材质：优质碳钢或不锈钢。
·筛 筒 材 质：不锈钢（316）。
·电 机 功 率：N=0.75kw。
·设备主要适用于电厂、钢厂等各种行业的冷却 循环水过滤系统。

四、设备型号：

五、工作原理
（1）正常工作
需过滤水由设备下部进入设备内的筛筒，经筛筒过滤，滤后水由设备侧面流出，过滤过程完成。但筛筒截留悬浮物的增多，设备的进出水压差升高，当压差达到设定值时，则自动清洗，不同的筛筒规格适用于不同的过滤精度。
（2）清洗方式
本设备采用负压吸吮器，负压吸吮器由一台减速电机带动，绕筛筒内壁作螺旋运动。负压吸吮器将筛筒表面的杂物吸吮，同时排出体外，清洗时间为1～3min。
（3）控制系统
过滤设备设置在线差压表，当压差达到设定值时，输出标准信号至电控柜。然后控制电动排污阀和负压吸吮器开始工作。

六、筛筒精度对照表：

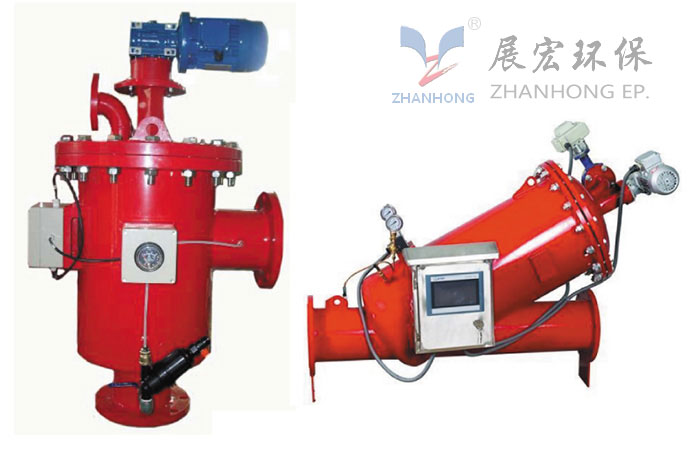

Self-cleaning filter

I. Overview:

The advantages of the fully automatic self-cleaning filter are: compact structure, small footprint, economical operation, strong impact load resistance and high processing efficiency. At the same time, the user can replace the intermediate sieve cylinder according to the water requirement to achieve the filtration precision.

II, the equipment features:

· Equipment layout: indoors and outdoors, (but must be explained when selecting).

·The equipment has no influence on the surrounding environment, no secondary pollution such as noise and vibration.

·Fully automatic intelligent control, no need for professional management personnel.

·Simple operation, convenient maintenance, stable effect and long service life.

·The equipment occupies less space, the processing capacity is large, and the backwashing water consumption is small.

·The equipment can be specially treated according to the user's requirements, site conditions, the raw water quality and water requirements.

III. Technical parameters and applicable specifications of the equipment:

· Single set of equipment processing capacity: 100.0 ~ 2500.0m2 / h.

· Equipment filtration accuracy: 3500 ~ 10μm.

· Minimum working pressure: 0.20 MPa.

· Maximum working pressure: 1.60MPa.

· Cleaning time: 1 to 3 minutes.

· Washing water consumption: ~500L.

· Working temperature: 4 ~ 80 ° C.

·Material body material: high quality carbon steel or stainless steel.

· Screen cylinder Material: Stainless steel (316).

• Motor power: N = 0.75 kW.

·The equipment is mainly suitable for cooling circulating water filtration systems in various industries such as power plants and steel mills.

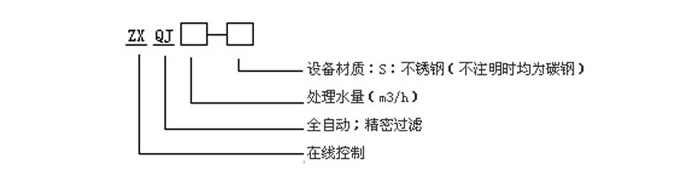

Ⅳ. Equipment model:

设备材质：Equipment Material 不锈钢：stainless steel

处理水量：The amount of water treated 全自动：Fully automatic

精密过滤：Precision filtration: 在线控制：Online control

V. Working principle

(1) normal operation

The water to be filtered enters the sieve cylinder in the equipment from the lower part of the equipment, and is filtered through the sieve cylinder. The filtered water flows out from the side of the equipment, and the filtration process is completed.

The increase of suspended solids in the screen cylinder increases the pressure difference between the inlet and outlet of the equipment. When the pressure difference reaches the set value, it automatically cleans. Different sieve cylinder specifications are suitable for different filtration precision.

(2) Cleaning method

The negative pressure sucking device is adopted. The negative pressure sucking device is driven by a deceleration motor and moves spirally around the inner wall of the sieve cylinder. The negative pressure sucker sucks up the sundries on the surface of the sieve tube and excretes them out of the body at the same time. The cleaning time is 1 ~ 3min.

(3) control system

The filter equipment is equipped with an online differential pressure meter. When the pressure difference reaches the set value, the standard signal will be output to the electric control cabinet. Then the electric drain valve and the negative pressure sucker start to work.

VI. Accuracy comparison sheet of sieve cylinder:

微米：Micron 毫米：Millimeter

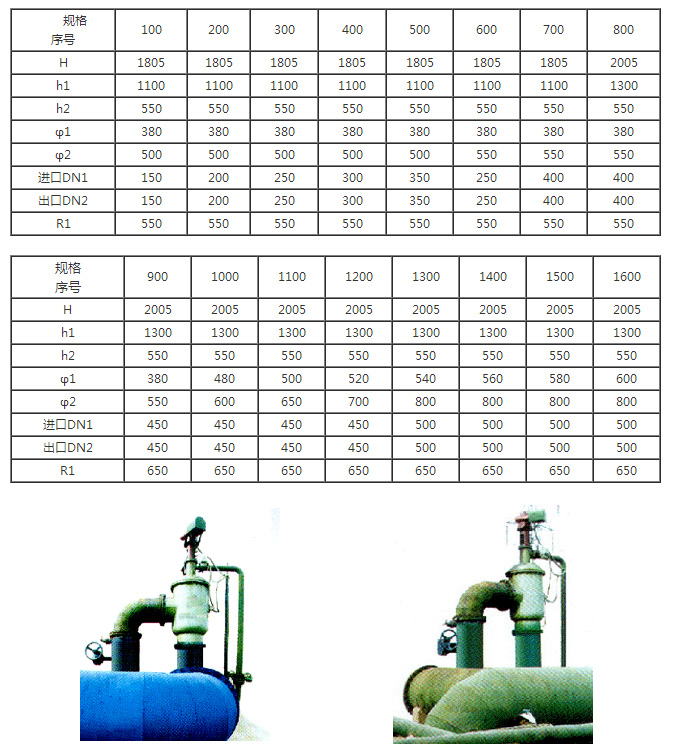

VII. Equipment specification

规格：specification

序号：No.

进口：inlet

出口：outlet
